Using 5V Motion Sensors with PicoBoo and BooBox Controllers

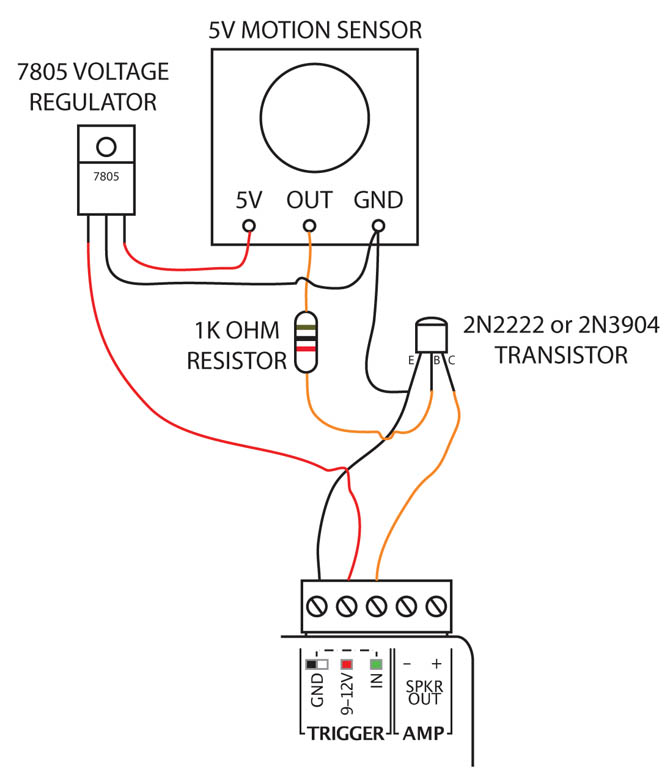

CIRCUIT FOR CONTROLLERS WITHOUT “C” TERMINAL (PICOBOO / PICOFX)

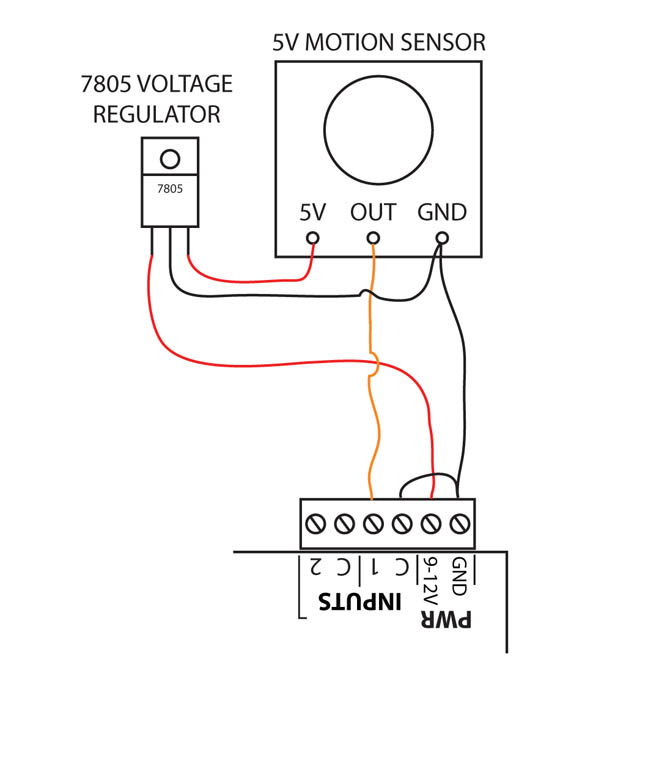

CIRCUIT FOR CONTROLLERS WITH “C” TERMINAL (BOOBOX 4 / 8 / BOOTUNES)
|
PARTS CAN BOUGHT FROM DIGIKEY.COM |
|
|
DESCRIPTION |
PART# |
|
7805 VOLTAGE REGULATOR |
L7805CV |
|
1K OHM RESISTOR |
CFR-25JB-1R0 |
|
2N2222 TRANSITOR |
P2N2222AG |
