The BooBox, PicoBoo controllers, Wireless Trigger, and other similar devices with relays are designed to switch on devices that are rated less than 10 amps.  If you need to control a device that is greater than 10 amps you will need to use a relay that can handle the load. We recommend a solid state type relay. This document shows you how to use these.


Notes:

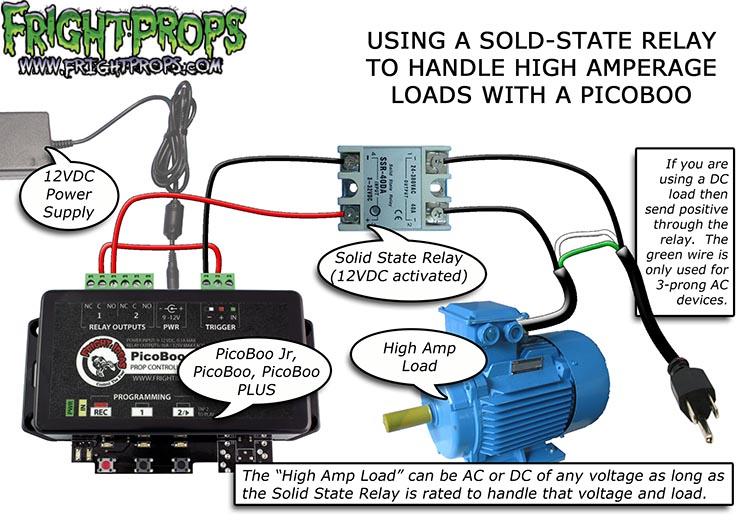

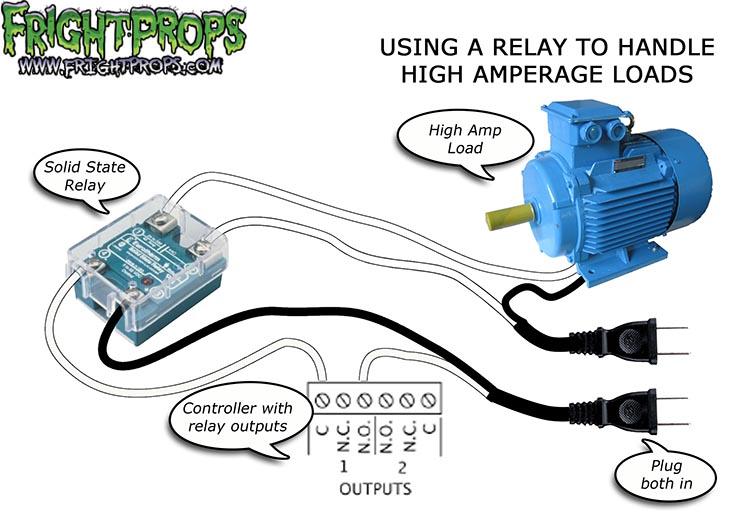

  • A motor is shown in the picture.  This information also applies to any high amperage load such as high wattage lights, pumps, etc.
  • Use a relay that can handle the amperage your device will be drawing.
  • The two POWER plugs should both be plugged in to an outlet or power strip at all times.
